Three.js Scroll Hourglass — Volume-True Sand Timer

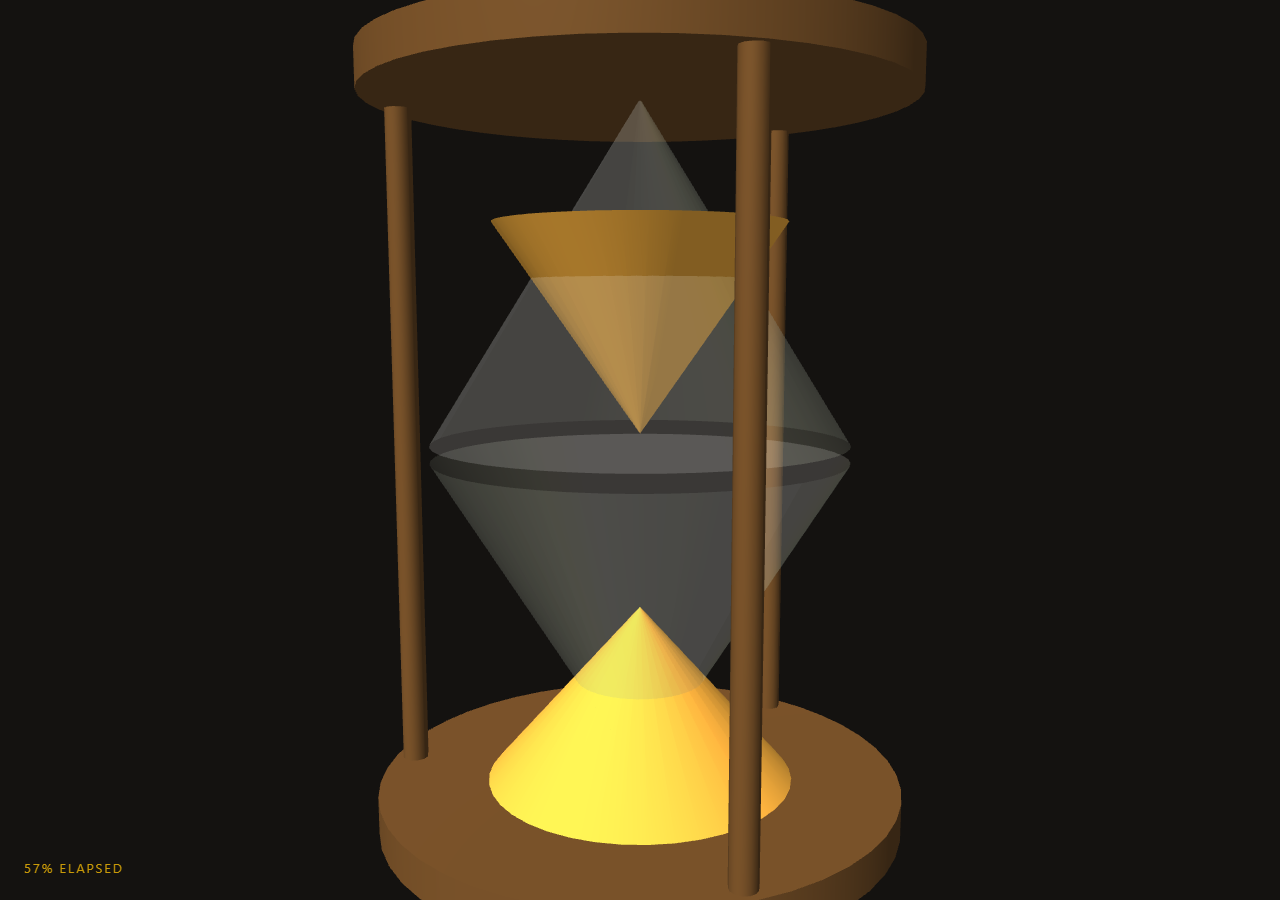

The Three.js Scroll Hourglass Sand Timer snippet runs sand through a glass as the user scrolls — the upper pile shrinking, a thin accelerating grain stream threading the neck, the lower pile growing — and, once the last grain falls, flips the entire instrument upside down in the final 12% of scroll, ready to run again. GSAP's ScrollTrigger scrubs elapsed time; the sand piles obey a cube-root law that keeps their combined volume honest.

Volume conservation is a cube root

The naive approach scales pile height linearly with progress, which loses sand: a cone at half scale holds one-eighth the volume, so linear-scaling piles would visibly evaporate mid-run. Since pile volume scales with the cube of uniform scale, the correct mapping is scale = cbrt(fraction) — the top pile scales by cbrt(1 − run) and the bottom by cbrt(run), making their volumes sum to a constant at every scroll position. The visible consequence is exactly what real hourglasses do: the top pile seems barely to shrink at first, then collapses rapidly at the end, while the bottom pile leaps up early and creeps later. The physics produces the drama for free.

Pinning cone tips through scaling

Scaling a cone happens about its center, which would make the top pile float off the neck as it shrinks. Both piles therefore get their Y position recomputed from their scaled height each frame — the inverted top cone's tip stays pinned at the neck (y = 0.4 + scaledHeight/2), and the bottom pile's base stays welded to the bulb floor. It is the scaling counterpart of the hinge-translation trick in the book pages snippet: decide which edge must not move, then position from that edge.

A grain stream that falls, not drips

The neck stream is 220 recycled particles with wrapping lifetimes, respawning at the neck only while sand is actually running (0 < run < 1) — the same spawn-gating as the rocket launch exhaust, so the stream starts and stops as a consequence of state rather than a toggle. Each grain's fall speed grows with its lifetime (0.18 + life × 0.55), approximating gravitational acceleration; grains vanish when they meet the rising surface of the bottom pile, whose height the kill-line tracks via botSand.position.y + 2.6 × scale. The stream visibly lands *on* the pile at every fill level.

Glass from MeshPhysicalMaterial, frame from primitives

The bulbs are two open-ended cones at 16% opacity with near-zero roughness and depthWrite: false — the standard recipe for believable glass without refraction shaders: transparency plus specular highlight equals glass to the eye, the same budget-material philosophy as the cover glass in the exploded view. The wooden frame is two discs and three pillars of rough MeshStandardMaterial, warm-lit to set the antique mood.

The flip closes the loop

Everything — glass, frame, piles, stream — lives in one rig Group, so the final phase can smoothstep rig.rotation.z through π and the whole instrument turns over as a unit. Because the flip window sits after the sand window (88%/12% of one scrubbed value, the phase-split pattern from the Rubik's cube assembly), scrolling back first un-flips, then un-pours. The elapsed HUD reads from the run fraction — a scroll-progress display in the spirit of a scroll reading-time indicator, but diegetic: the page's progress bar is the sand itself.
