Source Code

<div class="demo">
  <div class="phone-frame">
    <div class="inbox-screen">
      <div class="inbox-header">Inbox</div>
      <ul class="swipe-list" id="swipeList">
        <li class="swipe-item" data-id="1">
          <div class="swipe-actions">
            <button class="swipe-action archive" data-action="archive">Archive</button>
            <button class="swipe-action delete" data-action="delete">Delete</button>
          </div>
          <div class="swipe-content">
            <span class="swipe-avatar">MC</span>
            <div class="swipe-text">
              <span class="swipe-title">Mia Chen</span>
              <span class="swipe-preview">Approved the design changes for the...</span>
            </div>
          </div>
        </li>
        <li class="swipe-item" data-id="2">
          <div class="swipe-actions">
            <button class="swipe-action archive" data-action="archive">Archive</button>
            <button class="swipe-action delete" data-action="delete">Delete</button>
          </div>
          <div class="swipe-content">
            <span class="swipe-avatar">SO</span>
            <div class="swipe-text">
              <span class="swipe-title">Sam Okoye</span>
              <span class="swipe-preview">Can we move Thursday's sync to...</span>
            </div>
          </div>
        </li>
        <li class="swipe-item" data-id="3">
          <div class="swipe-actions">
            <button class="swipe-action archive" data-action="archive">Archive</button>
            <button class="swipe-action delete" data-action="delete">Delete</button>
          </div>
          <div class="swipe-content">
            <span class="swipe-avatar">JP</span>
            <div class="swipe-text">
              <span class="swipe-title">Jules Park</span>
              <span class="swipe-preview">Here's the updated budget spreadsheet...</span>
            </div>
          </div>
        </li>
      </ul>
      <p class="swipe-hint">Drag a row left to reveal actions. Drag with a mouse too — the interaction works with both touch and pointer input.</p>
    </div>
  </div>
</div>

Swipe-to-Reveal List Item Actions — Archive/Delete with Real Drag Physics

Swipe-to-Reveal List Item Actions (Archive / Delete) · Mobile · Plain HTML, CSS & JS · Live preview

What's included

Features

Row content follows the pointer's live position throughout the drag, not a preset fixed-distance animation
Drag position is clamped to a valid range between fully-open and fully-closed on every single movement, regardless of pointer travel distance
Genuine flick/threshold-based open-vs-closed decision on release, not an all-or-nothing single-tap trigger
Tapping an already-open row's content closes it, offering a second natural dismissal path beyond dragging back
Delete action sequences a content fade followed by a height collapse, rather than an abrupt instant removal
Archive action gives a brief visual confirmation flash before automatically closing the revealed actions
Built entirely on Pointer Events with setPointerCapture, working identically for touch and mouse input

About this UI Snippet

Swipe-to-Reveal List Actions — Getting the Drag Physics Right

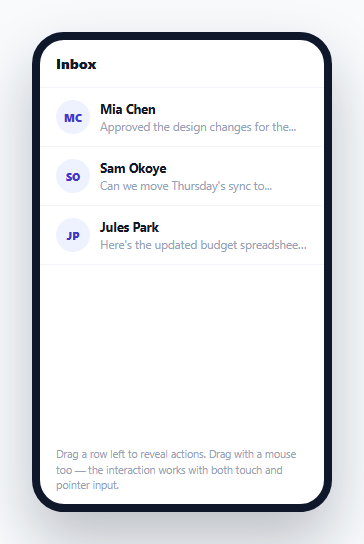

Screenshot of the Swipe-to-Reveal List Item Actions (Archive / Delete) snippet rendered live

The swipe-left-to-reveal-actions pattern is familiar from every mobile mail and messaging app — but a convincing implementation depends on getting the *drag physics* right, not just sliding a panel a fixed distance on tap. This snippet tracks the actual pointer position throughout the gesture, clamps it to a valid range, and decides open-vs-closed based on how far the drag traveled relative to a real threshold — the same feel as a native swipe action.

The row's content follows the pointer exactly, not a preset animation

While dragging, setTranslate() is called on every pointermove with a position computed directly from the pointer's live delta — the row's content visually tracks the finger or cursor in real time, rather than snapping through a fixed pre-built animation the instant a swipe is detected. This is what makes the interaction feel physically connected to the gesture rather than merely triggered by it.

Clamping keeps the drag within a valid range, always

Math.min(0, Math.max(-ACTIONS_WIDTH, currentX + delta)) bounds every intermediate drag position between fully-closed (0) and fully-open (-ACTIONS_WIDTH, exactly the combined width of the two action buttons) — no matter how far past either edge the pointer actually travels. Without this clamp, a fast or long drag could push the content translateX far beyond the actions' actual width, either revealing empty space beyond the buttons or over-dragging in the closed direction into negative content overlap.

A genuine flick threshold, not "any drag opens it"

endDrag() decides whether to snap open or closed based on whether the final drag position passed the halfway point of ACTIONS_WIDTH — not whether *any* drag distance was registered at all. This matches how real native swipe interactions feel: a small, tentative drag that doesn't cross the threshold snaps back closed, while a more committed drag past the midpoint snaps fully open, giving the user forgiving, natural-feeling control rather than an all-or-nothing trigger.

Tapping open content closes it — a second, independent way back

Beyond dragging back to closed, a plain click on an already-open row's content also closes it. This matters because not every user will think to drag back; tapping the now-familiar visible content area to dismiss revealed actions is a common alternate expectation, and implementing it as a separate, simple click handler (checking isOpen first) covers that case without complicating the drag logic itself.

Delete animates height *after* the content fade completes, not simultaneously

The .removing class first fades the row's content opacity, and — via a CSS transition-delay on the outer <li>'s max-height — only *then* collapses the row's height to zero. Collapsing height and fading content at exactly the same time would look like the text is being physically squashed as it disappears; sequencing fade-then-collapse instead produces a cleaner, more intentional-feeling removal.

Build with AI

Build, Understand, Optimize, and Extend It With AI

Ask an AI assistant to explain why clamping the drag position on every pointermove (rather than only at the end of the gesture) is necessary for correct behavior, and to walk through what would visually happen without that clamp during a fast, long drag. It's also worth asking for a version that supports swiping right to reveal a different set of actions on the opposite side, or one that automatically closes any other currently-open row when a new row starts being dragged, matching how most real inbox apps only allow one swiped-open row at a time.

Prompt to recreate it

Copy this into your AI assistant of choice to build the effect from scratch, or as a jumping-off point for your own variant:

text
Build a swipe-to-reveal list item actions component in HTML, CSS, and vanilla JavaScript using the Pointer Events API — no external library.

Requirements:
- A vertical list of at least three items, each showing content (avatar, title, preview text) with two hidden action buttons (e.g. Archive and Delete) positioned underneath it, revealed by swiping the content left.
- Implement the drag using pointerdown/pointermove/pointerup/pointercancel with setPointerCapture, translating the row's content horizontally to directly track the pointer's live position throughout the gesture — not a preset fixed-distance animation triggered by a simple tap.
- Clamp the content's horizontal translation on every single pointermove to stay within a valid range between fully closed (0) and fully open (the exact combined width of the revealed action buttons), regardless of how far the pointer actually travels past either boundary.
- On release, decide whether to snap the row fully open or fully closed based on whether the drag passed the halfway point of the actions' width — a genuine threshold-based decision, not simply whether any drag occurred.
- Add a click handler on an already-open row's content that closes it, providing users a way to dismiss revealed actions without needing to reverse the drag gesture.
- Clicking the Delete action should animate the row's content fading out, and only after that fade completes, collapse the row's height to zero before removing it from the DOM — the two animations should be sequenced, not simultaneous.
- Clicking the Archive action should give a brief visual confirmation (like a background color flash) and then automatically close the revealed actions back to the closed position.

Want to tighten it up first? Run this prompt through the AI Prompt Studio to score it across 8 quality dimensions, catch anti-patterns, and tune the wording for Claude, ChatGPT, or Gemini before you paste it in.

Step by step

How to Use

  1. 1
    Drag a row left with a mouse or touchThe row's content visually tracks the drag in real time, revealing the archive/delete actions underneath it as it slides.
  2. 2
    Release partway through a short dragIf you didn't drag past the halfway point of the actions' width, the row snaps back closed automatically.
  3. 3
    Release after dragging past the halfway pointThe row snaps fully open, staying revealed until you interact with it again.
  4. 4
    Tap the open row's content, or drag it back rightBoth close the row — tapping is a quick way to dismiss without needing to reverse the drag gesture.
  5. 5
    Tap "Delete"The row's content fades first, then its height smoothly collapses to zero before it's removed from the DOM.

Real-world uses

Common Use Cases

INBOX
Mail and messaging inbox lists
The canonical mobile pattern — swipe an email or message to archive or delete without opening it first.
TODO
Task and to-do list items
Swipe-to-complete or swipe-to-delete task rows in a mobile productivity app.
NOTIFICATION
Notification center list items
Dismissible notification rows benefit from the same swipe-reveal pattern for quick, one-handed dismissal.
CART
Mobile cart or list item removal
Shopping cart or saved-items lists where swiping to reveal a remove action keeps the primary tap target focused on the item itself.
Related: Sticky Footer CTA Bar with Safe-Area Insets
See the Sticky Footer CTA Bar with Safe-Area Insets for a related mobile pattern worth pairing with this one.

Got questions?

Frequently Asked Questions

Tracking the pointer's live position on every move makes the interaction feel physically connected to the gesture — the same feel users expect from native swipe actions on their phone, rather than a UI element that merely reacts to a swipe being detected after the fact.

Whether the final drag position passed the halfway point between fully-closed and fully-open (ACTIONS_WIDTH / 2) — a real threshold-based decision, not simply whether any dragging happened at all. This gives forgiving, natural-feeling control matching real native swipe interactions.

Yes — tapping anywhere on the open row's visible content closes it via a separate click handler, giving users a second, simpler way to dismiss the revealed actions besides reversing the drag gesture.

Fading the content first and only then collapsing the row's height (via a CSS transition-delay) avoids the visually awkward effect of text appearing to be physically squashed as the row shrinks — sequencing the two produces a cleaner, more intentional-feeling removal animation.

The drag position is clamped with Math.min/Math.max on every movement to stay within the valid [-ACTIONS_WIDTH, 0] range, so no amount of extra drag distance can push the row translation beyond fully-open or fully-closed — it simply stops moving once it hits either boundary.

Both — the interaction is built entirely on Pointer Events (pointerdown/pointermove/pointerup/pointercancel) with setPointerCapture, which unifies mouse, touch, and pen input under one API, so dragging with a mouse produces identical behavior to a finger swipe.
