Skills Assessment Radar Chart — Trig-Plotted SVG Spider Chart

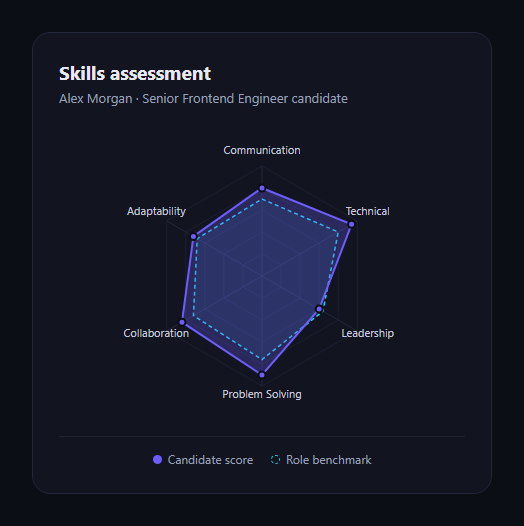

Screenshot of the Skills Assessment Radar Chart snippet rendered live

The skills assessment radar chart plots several skill dimensions — communication, technical, leadership, and more — as a polygon on a spoke grid, so a reviewer can read strengths and gaps at a glance. This snippet computes every point with real trigonometry and draws it as raw SVG, no charting library involved.

The actual angle formula

For axisCount axes, axis i's angle is i * (2 * Math.PI / axisCount) - Math.PI / 2. The 2 * Math.PI / axisCount term divides the full circle evenly between axes; subtracting Math.PI / 2 rotates the whole chart so axis 0 points straight up instead of straight right — matching how radar charts are conventionally drawn.

Value to point, honestly

pointFor(index, value) turns a score into a radius with (value / maxValue) * maxRadius, then projects it along that axis's angle with center + r * Math.cos(angle) for x and center + r * Math.sin(angle) for y — the standard polar-to-Cartesian conversion. A score of 0 collapses to the center; a perfect score reaches maxRadius exactly.

Two polygons, one grid

Both the dashed benchmark polygon and the solid score polygon reuse the same pointFor/pointsAttr functions, just with different value arrays — so they're guaranteed to sit on the same axes and scale, making them directly comparable. The background grid rings are drawn the same way at 20/40/60/80/100% of maxRadius, confirming the geometry is consistent at every level.

A closed polygon, always

Because SVG's <polygon> element automatically connects its last point back to its first, and every axis contributes exactly one point in a fixed order, the shape is guaranteed closed with no separate "closing point" to remember or get wrong.

Everything generated, nothing hardcoded

Grid rings, spokes, axis labels, both polygons, and the score dot markers are all built from the same axes array in a loop — add a seventh skill axis and the whole chart, including its labels and angles, adapts automatically.

Customizing it

Change axisCount by adding or removing entries in axes, adjust maxValue/maxRadius for a different scale, or add a second candidate's polygon for direct comparison. Pair it with circular progress for single-metric summaries, or a quiz result breakdown for assessment scoring elsewhere in a hiring flow.
