Canvas destination-out compositing — drawn shapes erase existing pixels instead of painting over them, the exact mechanic that makes a scratch surface feel real

Pixel-sampling reveal detection — getImageData() counts transparent pixels and auto-clears the card once a configurable percentage threshold is crossed, so visitors never have to scratch every corner

Real DOM prize content underneath — the badge, headline, and code are plain HTML hidden by the canvas, so the "prize" stays selectable, accessible, and easy to restyle without touching any drawing code

Unified mouse + touch handling — a single pointerPos() helper normalizes both input types into canvas-space coordinates, with touch-action: none to stop page scroll while scratching

Smooth fade-and-reveal finish — a CSS opacity transition dissolves the spent overlay and a slide-up confirmation message appears, instead of an abrupt cut to the prize

One-click reset — a "Reset card" button repaints the scratch layer and clears all state, perfect for demos or repeatable promo widgets

Zero dependencies — pure Canvas 2D API and vanilla JavaScript; copy the HTML, CSS, and JS into any page and it runs immediately

About this UI Snippet

How this scratch card reveal was built — Canvas compositing and pixel sampling

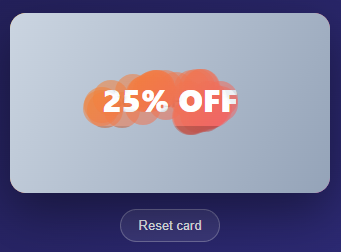

Screenshot of the Scratch Card Reveal snippet rendered live

This snippet recreates the "scratch-to-win" promo card you see in loyalty apps, email campaigns, and game-style discount popups — drag across a frosted overlay and a hidden prize erodes into view underneath, exactly like scratching a physical lottery ticket. The whole effect runs on a single <canvas> layered on top of a plain HTML prize card, with zero dependencies and about 90 lines of JavaScript.

Painting the scratch layer

A paintLayer() function fills the canvas with a brushed-metal linear gradient (#cbd5e1 to #94a3b8) and stamps "SCRATCH HERE" across the middle in semi-transparent text. That canvas sits directly over a .prize div containing the badge, headline, and discount code — the prize is real DOM markup the whole time, just hidden behind an opaque layer of pixels. If you want to see the same gradient-fill-and-text primitives applied to a different effect, the Sparkline Chart snippet draws its lines and fills with the very same canvas building blocks, just arranged into a data visualization instead of a prize layer.

Erasing with `destination-out` compositing

The actual "scratching" is one line of canvas magic: ctx.globalCompositeOperation = 'destination-out'. In this mode, anything you draw doesn't add new pixels — it *subtracts* from what's already there, punching transparent holes wherever the new shape overlaps the existing layer. Each pointer move calls scratchAt(x, y), which draws a filled circle (ctx.arc + ctx.fill) at the cursor position; because of the composite mode, that circle erases a soft round patch of the gradient instead of painting over it, revealing the prize card underneath pixel by pixel.

Detecting "fully scratched" with pixel sampling

Rather than waiting for the visitor to scratch every last pixel — which feels tedious and often never quite happens — checkCleared() reads the canvas's raw pixel data with ctx.getImageData() and walks every fourth byte (the alpha channel) to count how many pixels have become transparent. Once that ratio crosses a CLEAR_THRESHOLD of 0.55 (55% scratched away), the snippet fades the whole canvas out with a CSS opacity transition and slides in a "Scratched clear!" confirmation message — so the reveal feels generous and complete well before every pixel is gone.

Pointer and touch in one code path

A small pointerPos() helper normalizes both mousemove and touchmove events into the same {x, y} shape, scaling client coordinates into canvas-space coordinates via getBoundingClientRect(). That lets start, move, and end handle mouse and touch identically — register both event families once, and the scratching works the same whether someone drags with a mouse on desktop or a finger on a phone, with touch-action: none on the canvas preventing the page from scrolling mid-scratch.

Build with AI

Build, Understand, Optimize, and Extend It With AI

You do not have to trace the compositing math on your own. Paste this snippet's HTML, CSS, and JS into an AI coding assistant like Claude and ask it to explain exactly why setting globalCompositeOperation to destination-out makes a filled arc erase pixels instead of painting over them, and why checkCleared reads the alpha byte at every fourth index of the ImageData array rather than every byte. The same assistant is useful for optimizing it — ask whether calling getImageData on the full canvas after every single pointermove is wasteful once the card is large or scratched rapidly, and how to throttle that sampling without missing the moment the threshold is crossed. It is just as useful for extending the effect — ask it to make the scratch brush a soft-edged gradient instead of a hard-edged circle, add a haptic or sound cue at the threshold crossing, or generalize the prize layer to load an arbitrary background image instead of a solid gradient. Treat the code less like a finished artifact and more like a starting point for a conversation.

Prompt to recreate it

Copy this into your AI assistant of choice to build the effect from scratch, or as a jumping-off point for your own variant:

text

Build a "scratch card" reveal in plain HTML, CSS, and JavaScript using only the Canvas 2D API — no images, no libraries, no CSS mask tricks.

Requirements:
- A prize layer built from real HTML (a badge, headline, and code), with a canvas element absolutely positioned directly on top of it at the same size, covering the prize completely.
- On load, paint the canvas with an opaque linear gradient plus centered text like "SCRATCH HERE", so the prize underneath is fully hidden by real pixels, not by CSS opacity or visibility.
- Implement the actual scratching by setting ctx.globalCompositeOperation to destination-out before drawing, then stamping filled circles at the pointer position on every move — this composite mode must be the mechanism that erases existing canvas pixels rather than painting new ones on top.
- Normalize both mouse and touch input into the same coordinate math with one helper function that converts client coordinates into canvas-space coordinates via getBoundingClientRect, and register mousedown/mousemove/mouseup alongside touchstart/touchmove/touchend so the same scratch logic drives both input types, with touch-action: none on the canvas to stop the page from scrolling mid-gesture.
- Implement threshold-based auto-clearing: periodically call getImageData on the canvas, walk the pixel array checking only the alpha channel (every 4th byte) to count how many pixels have become transparent, and once that fraction crosses a configurable ratio (for example 0.55), treat the card as fully revealed.
- On crossing the threshold, fade the entire canvas out via a CSS opacity transition (add a class rather than removing the canvas outright) and reveal a confirmation message, plus provide a reset function that repaints the canvas and clears all scratch state back to the covered starting condition.

Step by step

How to Use

1
Stack the prize card under a canvasPlace the real prize markup (badge, headline, code) inside a .prize div, then layer an absolutely-positioned <canvas class="scratch-layer"> directly on top of it with inset: 0.
2
Paint the opaque scratch surfaceOn load, fill the canvas with a createLinearGradient and draw "SCRATCH HERE" text over it inside a paintLayer() function — this is the layer the visitor erases.
3
Erase with destination-out compositingSet ctx.globalCompositeOperation = "destination-out" before drawing, then stamp filled circles (ctx.arc + ctx.fill) at the pointer position on every mousemove/touchmove to punch transparent holes in the layer.
4
Sample pixels to detect "enough" scratchingRead ctx.getImageData() and count transparent pixels by checking the alpha byte (pixels[i] < 30). Once the transparent ratio passes a threshold (e.g. 0.55), treat the card as cleared.
5
Auto-clear and show the reveal messageWhen the threshold is hit, add a .cleared class that fades the canvas to opacity: 0 via CSS transition, and toggle a .show class on the confirmation message so it slides into view.
6
Wire up mouse and touch togetherNormalize coordinates with a pointerPos() helper that reads e.touches?.[0] ?? e, and register both mousedown/mousemove/mouseup and touchstart/touchmove/touchend so the same handlers drive desktop and mobile.

Real-world uses

Common Use Cases

Loyalty and rewards promos

Drop a scratch card into a loyalty dashboard or post-purchase page to reveal a discount code, bonus points, or surprise gift — the physical-ticket metaphor drives genuine excitement and higher engagement than a plain coupon banner.

Email and landing-page campaigns

Embed the interaction on a campaign landing page tied to an email blast — "Scratch to reveal your offer" consistently pulls more interaction than a static "Click to reveal" button.

Onboarding and gamified milestones

Use the reveal as a celebratory unlock for completing a signup flow, tutorial, or first purchase — pairs naturally with the Confetti Celebration Card for a two-step "complete, then celebrate" sequence.

Learning canvas compositing modes

A focused, real-world example of globalCompositeOperation — the same family of techniques (destination-out, source-atop, lighter, etc.) used in image editors, masking tools, and particle effects.

Game-style discount widgets for e-commerce

Replace a static "10% off" banner with an interactive scratch-to-win card on a cart or checkout page — the act of scratching makes the discount feel earned rather than handed out.

A reference for pixel-data inspection

The getImageData() sampling loop is a clean, copyable pattern any time you need to measure how much of a canvas has changed — useful well beyond scratch cards, in drawing apps, masking tools, or progress trackers.

Got questions?

Frequently Asked Questions

By setting ctx.globalCompositeOperation = "destination-out" before drawing. In that mode, new shapes subtract from the canvas's existing pixels rather than painting on top — so stamping a filled circle at the cursor position punches a transparent hole in the overlay, revealing whatever sits underneath (in this case, a real HTML prize card).

It does not wait for 100% — that would feel tedious. Instead, checkCleared() calls ctx.getImageData() to read every pixel's alpha value and counts how many have become transparent. Once that count divided by the total pixel count passes CLEAR_THRESHOLD (set to 0.55, i.e. 55%), the card is treated as revealed: the canvas fades out and a confirmation message appears.

Yes — scratchAt(x, y) draws a filled circle with ctx.arc(x, y, 18, 0, Math.PI * 2). Increase the radius (the 18) for a fatter brush, or replace the arc call with a different path — a rounded rectangle, a star, or even a custom SVG-derived shape — to change the scratch tool's footprint.

Both. A pointerPos() helper reads e.touches?.[0] ?? e so the same coordinate math works for mousemove and touchmove. The canvas also sets touch-action: none, which stops the browser from scrolling the page while a finger drags across it — without that, scratching on mobile would fight with the page scroll gesture.

Edit the markup inside .prize — the badge text, headline, and hint are plain HTML, not canvas drawing, so you can restyle or replace them freely (swap in a gift icon, a percentage-off headline, a referral code, anything). The scratch mechanics in the JS do not need to change at all; they only operate on the canvas overlay sitting above whatever content you put underneath it.

Yes — copy the HTML, CSS, and JS with the buttons on this page and use them anywhere, including commercial products, with no attribution required. The snippet uses only the native Canvas 2D API and vanilla JavaScript, so there are no licensing concerns or third-party dependencies to track.
