GLB Side-by-Side Model Comparison — Free Dual-Viewport Three.js glTF Snippet

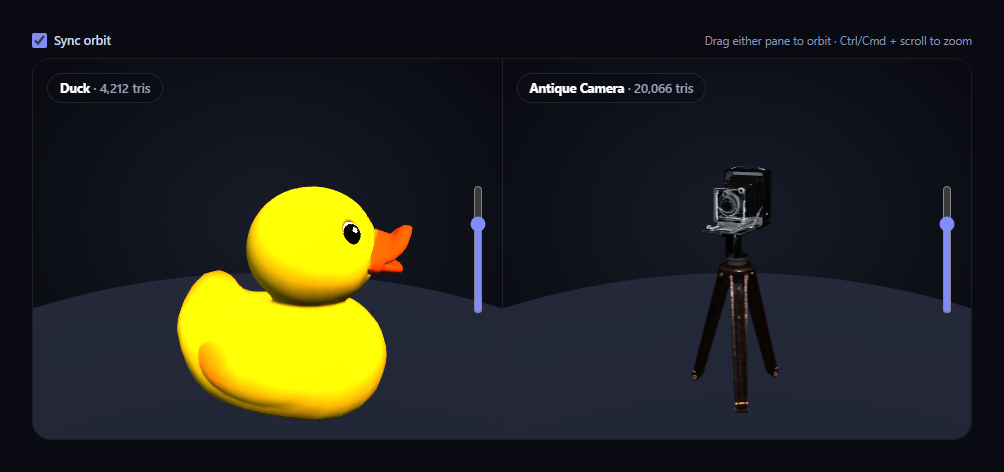

Comparing two 3D models properly means more than putting two screenshots next to each other — it means being able to inspect both from the same angle, live, while still being able to break away and look at either one independently. This snippet runs two entirely separate Three.js scenes, cameras, and OrbitControls instances side by side, and adds a "Sync orbit" toggle that mirrors one pane's camera angle onto the other whenever it's checked.

Two full scenes, not one shared one

Every piece of Three.js state — scene, camera, renderer, and OrbitControls — is built twice, once per key ('A' and 'B'), and stored in small lookup objects rather than duplicated as separate top-level variables. Each pane's GLTFLoader.load() call, resize handler, and render call are entirely independent, so a slow or failing load in one pane never affects the other.

Mirroring spherical coordinates, not raw camera positions

When "Sync orbit" is checked, dragging pane A fires OrbitControls' 'change' event, which calls mirrorOrbit('A', 'B'). Rather than copying A's camera position directly onto B (which would ignore that the two models sit at different distances from their own cameras), the snippet converts A's camera offset from its target into a THREE.Spherical — an azimuthal angle, polar angle, and radius — then rebuilds B's camera offset using A's *angles* but B's own existing *radius*. The result: both panes always show the same relative viewing angle, even while each keeps its own independent zoom level.

Auto-fit scale for both models independently

Each call to loadModel() measures its own model's bounding box with THREE.Box3 and scales it to the same fixed target height, so two models of very different native sizes and origins in their source .glb files still compare fairly, side by side, at a consistent visual scale.

A live triangle count per model

After each model loads, the snippet walks every mesh in its scene graph and sums up triangle counts from either the geometry's index buffer or its raw vertex count, displaying the total next to that pane's label — a genuinely useful, real number for anyone comparing model complexity, not a decorative placeholder.

Independent, honest fallbacks

If either .glb fails to load, that pane's error callback logs which pane failed and swaps in its own distinct placeholder shape and color, so a single broken URL never blanks out the whole comparison.

Zoom is opt-in, not a hijacked scroll wheel

Both panes turn off OrbitControls' built-in wheel-zoom and reimplement it as an explicit slider plus Ctrl/Cmd + scroll, exactly like every other snippet in this family, so a plain scroll over either pane always scrolls the page.

Customizing it

Swap either MODEL_URL for any other Khronos sample-asset .glb, add a third pane by extending the 'A'/'B' keys to 'C', or pair it with GLB product color configurator for a compare-then-customize flow.
