Spin the Wheel HTML CSS JS — Canvas Prize Wheel

A spin-the-wheel randomizer is one of the most kinetically satisfying UI components you can build — the smooth deceleration, the ticking sound on each segment, and the winner reveal all feel rewarding in a way that a random number generator does not. Building it correctly requires mastering four distinct browser technologies: Canvas 2D for drawing the wheel, requestAnimationFrame for smooth animation, the Web Audio API for the tick sounds, and pointer events for the spin interaction.

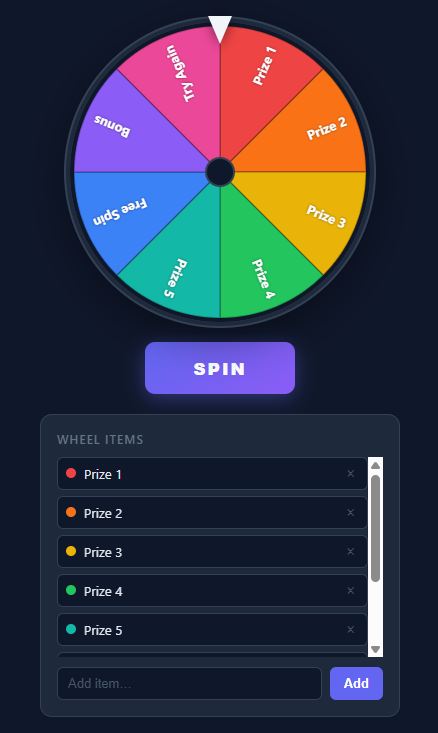

This snippet builds a complete, fully interactive prize wheel with editable items, dynamic segment drawing, requestAnimationFrame-based easing, Web Audio tick sounds, and a winner overlay — all in plain JavaScript with no external libraries.

Canvas 2D Arc Drawing

The wheel is drawn on an HTML <canvas> element using the Canvas 2D API. Each prize segment is a pie slice drawn with ctx.beginPath(), ctx.moveTo(cx, cy), ctx.arc(cx, cy, radius, startAngle, endAngle), ctx.closePath(). The arc command takes angles in radians: startAngle = rotation + i * segmentAngle, endAngle = startAngle + segmentAngle, where segmentAngle = 2 * Math.PI / items.length.

The fill color cycles through the COLORS array by index: ctx.fillStyle = COLORS[i % COLORS.length]. After filling, the text label is drawn: ctx.save(), translate to the arc midpoint, rotate to align with the segment, ctx.fillText(item), ctx.restore(). The text position: translate to (cx + cos(midAngle) * (radius * 0.6), cy + sin(midAngle) * (radius * 0.6)) — 60% of the way from center to edge along the segment midpoint angle.

The entire drawWheel(rotation) function is called on every animation frame, passing the current rotation offset. This re-draws all segments at the new angle, creating the animation.

The Pointer Triangle

A CSS triangle (<div class="pointer">) sits at the top of the wheel and marks the winning segment. It uses the border trick: a zero-width/height div with border-left: 14px solid transparent; border-right: 14px solid transparent; border-top: 24px solid #fff creates a downward-pointing triangle. The pointer is purely CSS — no SVG, no canvas.

The winning segment is determined by which segment is under the pointer at the end of the spin. Since the pointer is at the 12 o'clock position (−90° = top of canvas), the winning segment is: ((2 * Math.PI - (finalRotation % (2 * Math.PI))) / segmentAngle) rounded to get the segment index.

requestAnimationFrame Easing

The spin animation uses a cubic ease-out deceleration. A random target rotation is computed: targetRotation = rotation + (Math.PI * 2 * spinCount) + randomOffset where spinCount is 4–6 full rotations and randomOffset is a random fraction of a full rotation. This ensures the wheel spins multiple times before landing on a random segment.

On each animation frame: t = (now - startTime) / DURATION (where DURATION is 4800ms). The easing: ease = 1 - Math.pow(1 - t, 4) — a quartic ease-out that starts fast and decelerates dramatically near the end, simulating physical wheel inertia. currentRotation = startRotation + (targetRotation - startRotation) * ease. When t >= 1, the animation stops, the final rotation is set, and the winner is computed.

Web Audio API Tick Sounds

The tick sound plays each time the pointer crosses a new segment during the spin. An AudioContext is created lazily on first user interaction (required by browser autoplay policy). On each animation frame, the current segment under the pointer is computed: currentSegment = Math.floor((2*Math.PI - normalizedRotation) / segmentAngle) % items.length. If currentSegment !== lastTickSegment, a tick plays and lastTickSegment updates.

The tick is synthesized with the Web Audio API: const osc = audioCtx.createOscillator(), osc.frequency.value = 880 (Hz), osc.connect(gainNode), gainNode.gain.setValueAtTime(0.15, now), gainNode.gain.exponentialRampToValueAtTime(0.001, now + 0.04), osc.start(), osc.stop(now + 0.05). This creates a brief 880Hz click that naturally fades out — no audio files, no WAV/MP3 loading required.

The tick frequency increases as the wheel decelerates: early in the spin, segments flash past quickly and ticks blend together. As the wheel slows, individual ticks become audible. This matches the physics of a real ratchet wheel.

Dynamic Segment Count and Item Editor

The wheel dynamically redraws when items are added or removed. Items are stored in a JavaScript array. renderItemList() creates a <li> element for each item with a delete button. drawWheel() always reads items.length to compute segmentAngle and cycles through COLORS by index.

Adding an item: the Add button reads the input value, validates it (non-empty, under max length), pushes it to the array, calls renderItemList() and drawWheel(rotation). Removing an item: the delete button calls items.splice(index, 1) and re-renders. The wheel instantly shows the updated segments with equal-width arcs.

Responsive Canvas Sizing

The canvas is resized on load and window.resize via resize(): const size = Math.min(300, window.innerWidth - 48). This caps the canvas at 300px and reduces it on narrow screens. canvas.width = canvas.height = size sets the pixel buffer, and canvas.style.width = canvas.style.height = size + "px" sets the CSS display size to match (1:1 pixel density by default, higher on devicePixelRatio screens if scaled).
